Environment

• YugabyteDB Anywhere - 2.20.x, 2024.x
• Linux Host Operating System Version:
  • RHEL 8+ (kernel 4.18)
  • Alma 8+ (kernel 4.18)

Issue

tserver nodes crash due to Operating System Out of Memory (OOM), or go unresponsive, requiring reboot of host.

Resolution

Overview

A tserver can crash due to memory conditions for numerous reasons. This article serves as a guide to gather appropriate information to characterize conditions which may contribute to the tservers crashing due to out of memory conditions.

Steps to Identify Excess Resident Set Size (RSS) Memory

1. Provide a support bundle which covers the same time period of the node restarts.  See Support Bundle documentation for more information.

2.  Provide Prometheus metrics from the cluster across the same time period for offline analysis.

• For versions 2024.2.x or later, the Prometheus metrics can be gathered as part of the Support Bundle. See Support Bundle for more information.
• Alternatively, a stand-alone version of promdump is available for gathering Yugabyte Prometheus metrics.

3.  In the event of live issue analysis, run the following PromQL query in the Prometheus UI (Documentation for Prometheus access), over the period of 2 weeks (default metrics retention window):

• For YBA version 2024.2.x or later, issue the following query, which calculates the amount of excess Resident Set Size (RSS) memory.
• The NODEPREFIX value can be found on the Nodes tab for the Universe. For example, if there is a node called yb-prod-appname-n1, the correct prefix value for this Universe is yb-prod-appname.

label_replace(
   avg_over_time(yb_process_memory_kb{
      type="resident", process=~"yb-tserver",node_prefix="NODEPREFIX"}[1m]
   ) * 1024
   - on (exported_instance)
   avg_over_time(
      {export_type=~"tserver_export",
       saved_name="generic_current_allocated_bytes",node_prefix="NODEPREFIX"}[1m])
   - on (exported_instance)
   avg_over_time(
     {export_type=~"tserver_export",
      saved_name="tcmalloc_pageheap_free_bytes",node_prefix="NODEPREFIX"}[1m])
    , "saved_name", "Tserver_other_RSS", "saved_name", ""
)

• For YBA versions earlier than 2024.2.x , issue the following query, which gives an approximate percentage of memory which may be reclaimable.
• The NODEPREFIX value can be found on the Nodes tab for the Universe. For example, if there is a node called yb-prod-appname-n1, the correct prefix value for this Universe is yb-prod-appname.

100 -
(sum by (exported_instance) (
   avg_over_time(
    {node_prefix="NODEPREFIX",
     saved_name=~"node_memory_(Cached|Buffers|MemFree)_bytes"}[1m]
   )
   or
   avg_over_time(
   {node_prefix="NODEPREFIX", export_type=~"tserver_export",
    saved_name=~"(generic_current_allocated_bytes|tcmalloc_pageheap_free_bytes)"}[1m]
   )
   or
   avg_over_time(
   {node_prefix="NODEPREFIX", export_type=~"master_export",
    saved_name=~"(generic_current_allocated_bytes|tcmalloc_pageheap_free_bytes)"}[1m]
   )
)
/
sum by (exported_instance) (
   avg_over_time(
   node_memory_MemTotal_bytes{node_prefix="NODEPREFIX"}[1m]
   )
)
* 100)

4.  Browse to the T-Server admin UI associated with a node which may be affected.  Browse to Utilities > Total Memory.  And compare two values:

Actual memory used (physical + swap)

vs.

TOTAL:    (   MiB) Bytes resident (physical memory used)

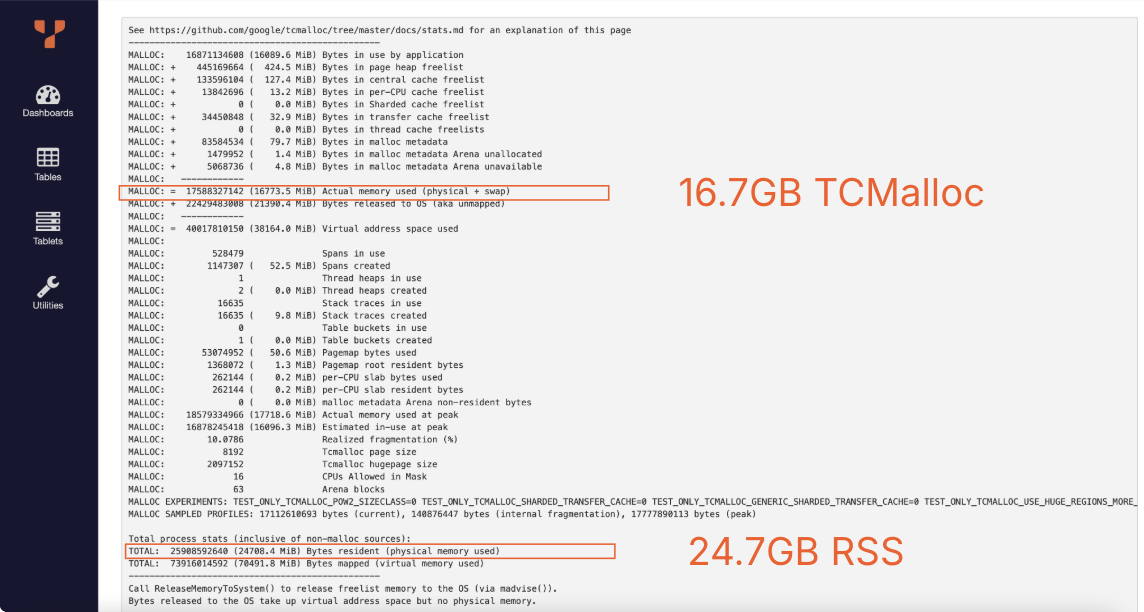

The example below shows a comparison of the two values and gaps which can emerge between the two.

5.  From each host in the cluster, gather the Transparent Hugepage (THP) settings by running the following command as the OS command line:

find /sys/kernel/mm/transparent_hugepage/ -type f -exec sh -c 'printf "%-70s %s\n" "{}" "$(cat {})"' \;

The output will look similar to the following (with potential differences in reported values):

/sys/kernel/mm/transparent_hugepage/defrag                             always defer defer+madvise [madvise] never
/sys/kernel/mm/transparent_hugepage/khugepaged/defrag                  1
/sys/kernel/mm/transparent_hugepage/khugepaged/scan_sleep_millisecs    10000
/sys/kernel/mm/transparent_hugepage/khugepaged/max_ptes_none           511
/sys/kernel/mm/transparent_hugepage/khugepaged/pages_to_scan           4096
/sys/kernel/mm/transparent_hugepage/khugepaged/max_ptes_swap           64
/sys/kernel/mm/transparent_hugepage/khugepaged/alloc_sleep_millisecs   60000
/sys/kernel/mm/transparent_hugepage/khugepaged/pages_collapsed         167670
/sys/kernel/mm/transparent_hugepage/khugepaged/full_scans              778
/sys/kernel/mm/transparent_hugepage/enabled                            [always] madvise never
/sys/kernel/mm/transparent_hugepage/use_zero_page                      1
/sys/kernel/mm/transparent_hugepage/shmem_enabled                      always within_size advise [never] deny force
/sys/kernel/mm/transparent_hugepage/hpage_pmd_size                     2097152

6.  Collect the kernel information  of the host by running the following commands, which may vary on the version of linux:

Kernel Version:

uname -a

Additional OS information (may vary with OS):

cat /etc/*release

And/Or the following command:

hostnamectl

7.  Contact Yugabyte Support via a ticket to assess the appropriate next steps.
