Environment

• YugabyteDB Anywhere - < 2.25.1 and < 2025.1

Issue

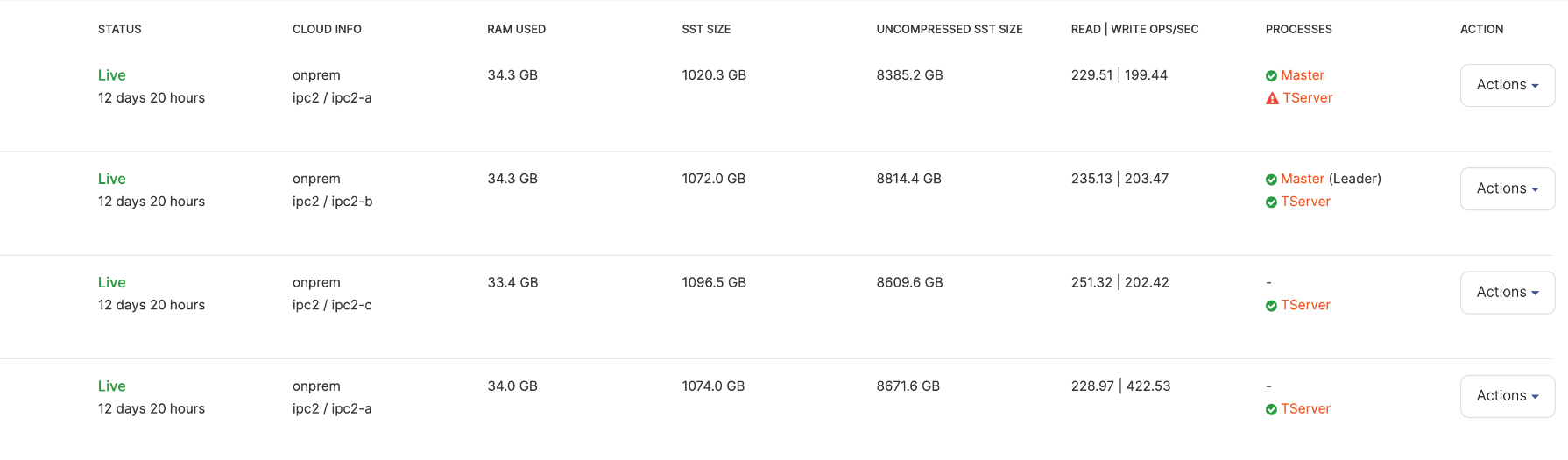

When there are a lot of tablets per tserver node, prometheus takes time to scrape the metrics and then it times out since the default timeout is 10 secs.

This can be confirmed from prometheus by running this query:


scrape_duration_seconds{export_type="tserver_export", universe_uuid="<universe_uuid>"}

where <universe_uuid> is to be replaced with the universe that is having this issue.

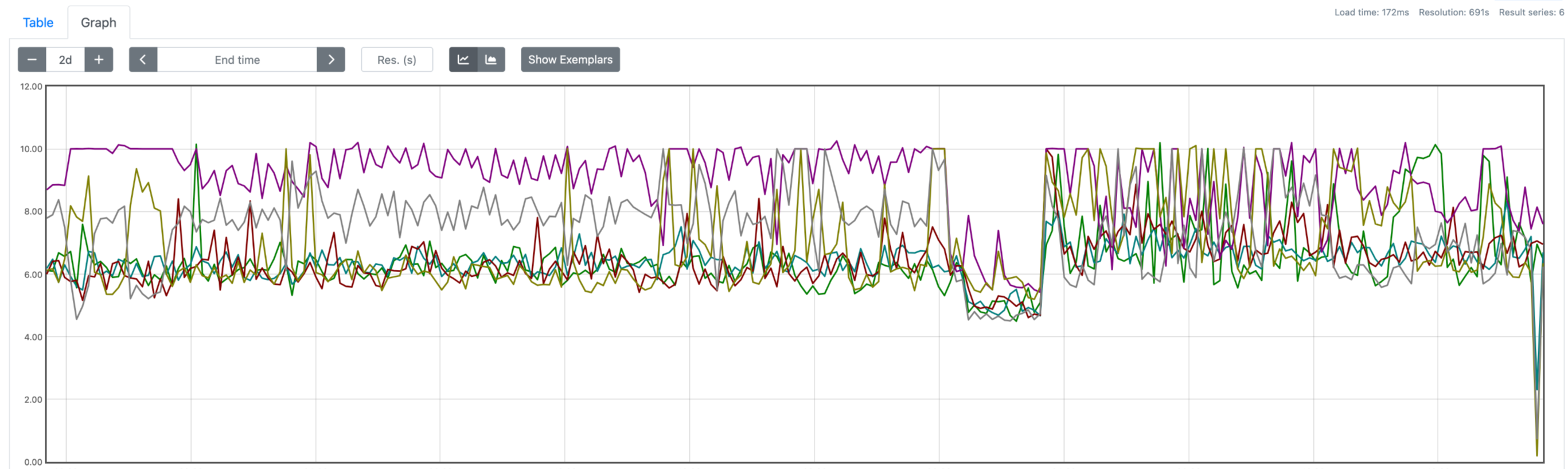

Here we can see that, few nodes are hitting the scrape timeout of 10secs.

Resolution

Overview

This issue occurs because prometheus is taking long to scrape the metrics from each tserver node and is timing out.


This is tuned in newer releases of 2025.1 and up and is also available in preview releases starting 2.25.1 as a part of #24565

Workaround

1.  Drop the unused databases or tables to reduce the number of tablets per tserver.

2.  Increase the scrape interval and scrape timeout from 10secs to 20secs or as needed on YBA node.

We can check the actual time needed to scrape using this curl command:


curl -k -o /dev/null -s -w "Total time: %{time_total}s\n" https://<Node-IP>:9000/prometheus-metrics

YBA installer - /opt/yba-ctl/yba-ctl.yml

Please change scrape_interval to 20s and scrape_timeout to 20s.

For YBA installer, you can run yba-ctl reconfigure after updating this yml.

Note: The workaround will not be preserved through upgrades and will have to be repeated if the system is upgraded from an affected release to another affected release.
